🚀 1:1 Scale Heavy-Duty CAD Templates

Double Your Shop’s Fabrication Speed. Eliminate Layout Rework.

Upload your 2D CAD drawings (.DXF, .DWG, or vector .PDF). We print and ship exact 1:1 scale templates on thick, sparks-resistant 180gsm shop paper. Unroll, clamp to your welding table, and start welding.

💡 The Cost of a Mistake: A single manual layout error on a complex gate or handrail can easily cost your shop $350+ in wasted tubing and hours of grinding and layout rework. TrueFab templates guarantee perfect scale alignment right out of the tube.

⚡ 10x Faster Layouts📏 Perfect Dimensional Accuracy🔥 Heavyweight Sparks-Resistant Stock
$6/lin. ft Standard (5-Day)$12/lin. ft Rush (72-Hour)10 Lin. Ft Order MinimumUp to 41" Tall Continuous Rolls
Shop-Tested Workflow

From CAD File to Finished Steel in 4 Simple Steps

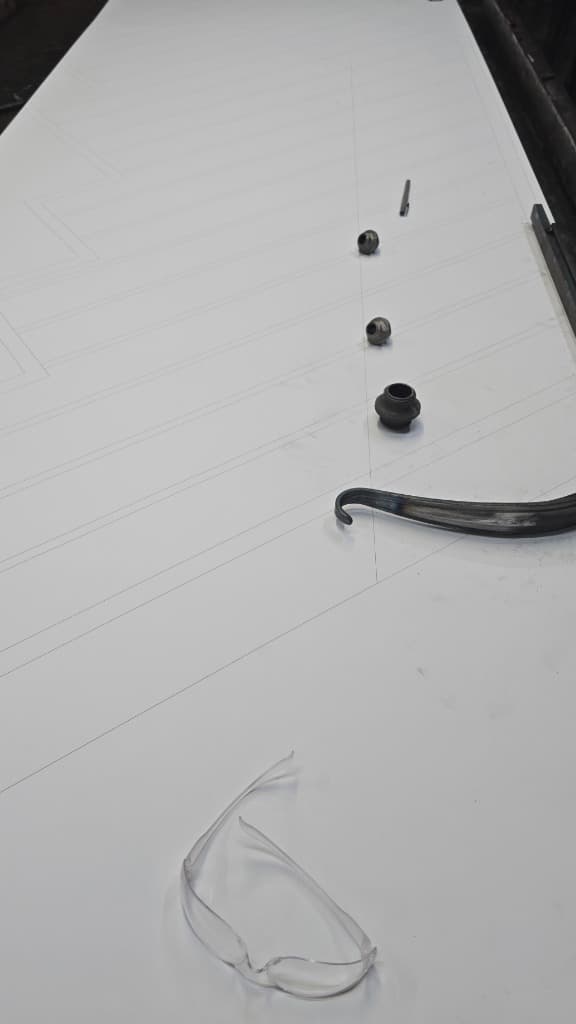

Step 1: Unroll 1:1 scale CAD template on metal fabrication welding table
STEP 1

Unroll & Layout

Unroll your heavy-duty shop paper template flat on your welding table. Tape or clamp the corners down securely.

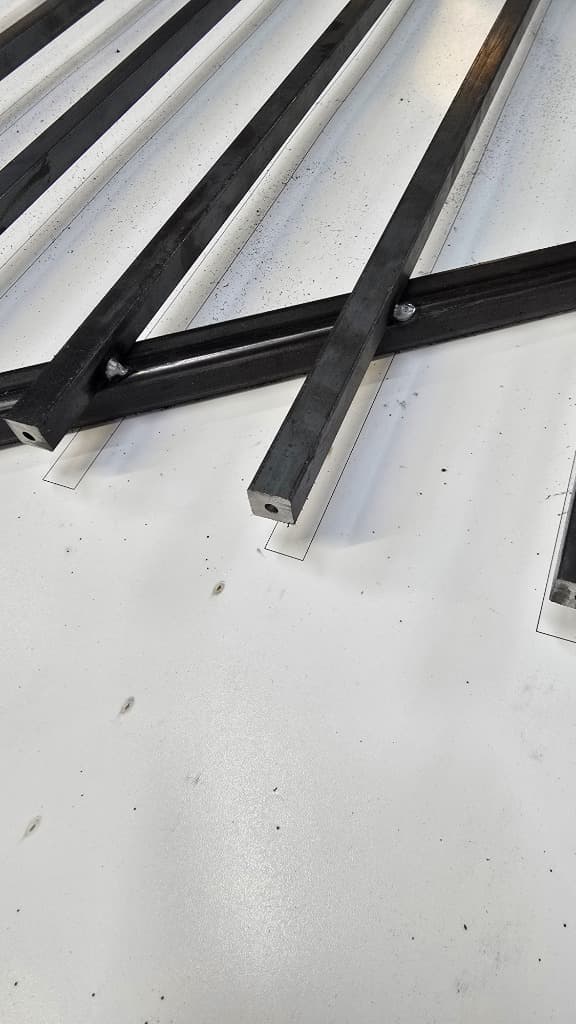

Step 2: Position square steel tubes and handrail profile elements over 1:1 lines
STEP 2

Position & Align

Lay down your cut steel profiles, tubing, or plates directly over the printed 1:1 scale calibration lines.

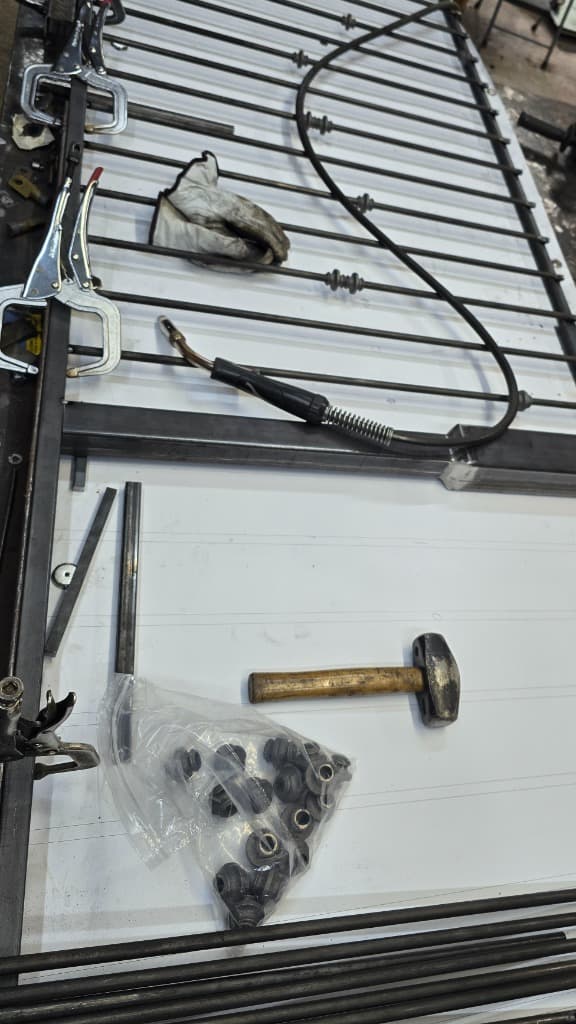

Step 3: Clamp ornamental iron scrollwork, pickets, and weldments directly on template
STEP 3

Clamp & Tack

Securely clamp pickets, scrolls, and hinge brackets. Tack-weld your metal assembly directly on the template.

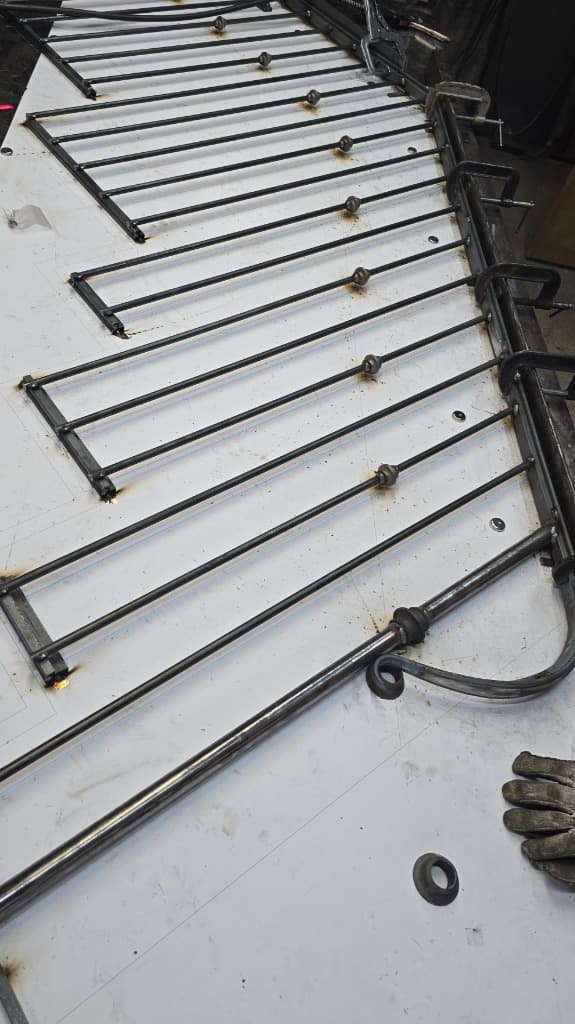

Step 4: Completed custom welded gate and handrail assembly matching 1:1 CAD design
STEP 4

Perfect-Fit Finish

Complete your structural passes. Lift off your finished metal work, guaranteed to be straight, square, and accurate.

Nationwide 1:1 CAD Plotting for Welding & Fab Shops

Engineered for Complex Metal Fabrication Layouts

🛠️ Stair Handrails & Guardrails

Plot pitched stair rake rails, commercial ADA handrails, radius balcony railings, and exact <4" code baluster spacing without trigonometry headaches.

⚜️ Ornamental Iron & Gates

Lay out arched driveway gates, estate double gates, forged scrollwork, collar placement, and picket symmetry at 1:1 scale right on your table.

🚗 Off-Road Chassis & Tube Work

Verify DOM/chromoly tube bends, roll cage hoops, 4-link suspension geometry, custom bumpers, and mitered tube notches before tacking.

📐 Structural & Architectural Steel

Full-scale templates for custom steel stair stringers, architectural canopies, laser-cut gusset alignment, and multi-angle structural frames.

🛡️ Reliability & Precision

Our 3-Step Quality & Verification Protocol

We know that structural layout prints are useless if they aren't accurate. That's why every single drawing passes through a manual review and calibration checklist before shipping.

1

Manual Scaling Verification

An experienced fabrication engineer opens and checks your CAD drawing. We cross-verify units (Inches, Millimeters, or Feet) and crop out extraneous title blocks so what prints is calibrated 1:1 to your fabrication assembly.

Why Not Print at an Office Store?

TrueFab 1:1 Shop Templates vs. The Alternatives

Standard retail blueprint printers (like Staples, Office Depot, or FedEx Office) use thin 20lb bond paper and auto-fit page scaling that ruins 1:1 fabrication tolerances.

Feature / Shop RequirementTrueFab Prints 1:1 TemplatesManual Table Layout (Tape & Chalk)Office Store Blueprints (Staples / FedEx)
Paper Weight & Durability 180gsm Sparks-Resistant StockSoapstone / chalk rubs off under steel Flimsy 20lb (75gsm) paper tears & burns
Humidity & Temperature Stability Humidity-Barrier CoatedHigh risk of $350+ manual trig/layout errorsStretches, curls, and buckles on shop floors
1:1 Dimensional Calibration Engineer Verified + Free Border Crop2–6 hours of skilled welder layout time “Fit-to-Page” often skews scale 3–8%
Max Printable Roll Size41" Printable Height × Continuous LengthLimited by welding table markingsUsually capped at 24"×36" or 36"×48" sheets
🎁 Exclusive Shop Bonuses Included

Get These High-Value Bonuses Free With Every Order

We want to guarantee you have the best experience possible using full-scale layout paper. That's why we bundle these critical tools with your order.

$15 Value
📦

Bonus #1: Heavy-Duty Protective Storage Tube

Paper templates are easily ruined by oil, water, or general shop grime. Every order is shipped inside an ultra-thick, moisture-sealed shipping tube. Reuse it to organize and store your templates for repeat jobs indefinitely.

$49 Value
🔍

Bonus #2: Free Technical In-House File Review

Avoid expensive printing mistakes. Instead of throwing your file blindly at an automated machine, our experienced pre-press layout engineers manually verify scale, crop out title blocks, and check path completeness before we run the plotter.

🤝

Our “Perfect-Fit” Shop Guarantee

We stand fully behind our precision wide-format plotting. If your printed template does not match your CAD drawing's dimensions, or if it gets damaged in transit during shipping, we will reprint and ship it immediately for free, or issue a 100% refund. No questions asked, no risk to your shop.

1
CAD Files
2
Delivery Speed
3
Secure & Submit

Step 1: Upload Your Drawings

Upload multiple CAD layouts and choose your manufacturing print speed.

Standard (5-Day)$6.00 / lin. ft
Rush (72-Hour)$12.00 / lin. ft
Order Minimum10 Lin. Ft ($60+)
Max Roll Height41 Inches (42" Roll)

Drag and drop your CAD or vector layout files here

or browse files on your computer

Supports 2D DXF, DWG, or vector PDF layout files up to 50MB each (max 20 files)

What is a “Print-Ready” File?

Simply upload the .dxf, .dwg, or vector .pdf files you use to build your shop fabrication drawings:

  • 1.Drawn Proportionally True to Scale: Whether exported in Inches, Millimeters, Centimeters, Meters, or Feet, as long as your geometry is drawn proportionally, our pre-press engineers verify and calibrate your file to print at an exact 1:1 physical scale.
  • 2.One Assembly Per File: Upload one section of railing, gate, or structural frame per file so it plots cleanly on our 42" continuous rolls (41" max printable height).
  • 3.Title Blocks Cropped Free: Leave your standard shop borders and title blocks where they are—we crop them out during pre-press setup so you only pay for the physical layout you need on your welding table.

Browsing on your phone?

Send yourself a direct link to upload your CAD files from your shop PC later.

FAQ

Frequently Asked Questions

Everything you need to know about our industrial 1:1 scale printing capabilities, data security, and shop policies.

No to both! We want to save your shop time, not create extra drafting work. You can send us the exact same vector .dxf, .dwg, or .pdf files you use to generate your standard shop drawings.

  • True-to-Scale Geometry: As long as your model is drawn proportionally true to scale (whether in Inches, Millimeters, or Feet), our layout engineers will handle the math to output an exact 1:1 full-scale template.
  • Automatic Border Cropping: There is no need to clean up your title blocks or shop borders. During our Free Technical In-House File Review ($49 Value), we will isolate your fabrication assembly and crop out extraneous borders so your print fits perfectly onto your welding table.
Yes, absolutely. We partner exclusively with Stripe to handle all payment card processing. Stripe is certified as a PCI-DSS Level 1 Service Provider, the highest security rating available in the payments industry. Your transaction is handled via Stripe's encrypted Setup Mode tokenization; we do not store, access, or ever log your credit card numbers on our servers.
Yes, we require a 10 linear foot minimum per order ($60.00 for Standard 5-business-day turnaround at $6.00/ft, or $120.00 for Rush 72-hour turnaround at $12.00/ft). You can upload and combine multiple smaller drawings in a single order to reach the 10-foot minimum. This covers our technical plotter calibration, heavyweight material setup, and manual linear verification checks.
We officially support 2D DXF, DWG (AutoCAD 2018 or older recommended), and vector PDF shop drawings. Ensure your elements are drawn proportionally in 2D space with one assembly per file. Avoid uploading 3D meshes or solid models.
We print using professional wide-format technical plotters specifically calibrated for tight linear scaling. Every print is verified for physical dimensional accuracy before shipping. As long as your CAD export dimensions are proportional, our printed output will match within micro-tolerances.
We stand 100% behind our 'Perfect-Fit' Shop Guarantee. Because each 1:1 template is custom-manufactured to your uploaded geometry, completed orders cannot be returned for buyer's remorse. However, if your printed template does not match your CAD drawing's dimensions or sustains damage in transit, we will reprint and ship it immediately for free, or issue a 100% refund.
We take your design privacy and intellectual property seriously. Your uploaded CAD files (.dxf, .dwg, .pdf) are stored securely on our encrypted servers for exactly 90 days after your order is completed. This provides a convenient window for you to request reprints or duplicate sets. After 90 days, your files are permanently and automatically deleted.
Yes, our paper is specifically chosen for industrial shop floors. We print on thick, heavyweight coated shop paper that stands up to heavy steel dragging and the intense heat and sparks of welding without tearing or burning. Additionally, a premium humidity-resistant barrier prevents the paper from expanding, contracting, or buckling due to temperature changes, keeping your templates perfectly accurate on the table.

Have a Question?

Need clarification on CAD file formats, custom print sizing, or delivery? Send us a message and we'll get right back to you.
